Venice Abstract White Complete Toilet Unit W. Pan, Cistern + Polished Chrome Flush

Venice Abstract White Complete Toilet Unit (Feat. a Square Pan, Soft Close Seat, Concealed Cistern + Polished Chrome Square Flush Plate)

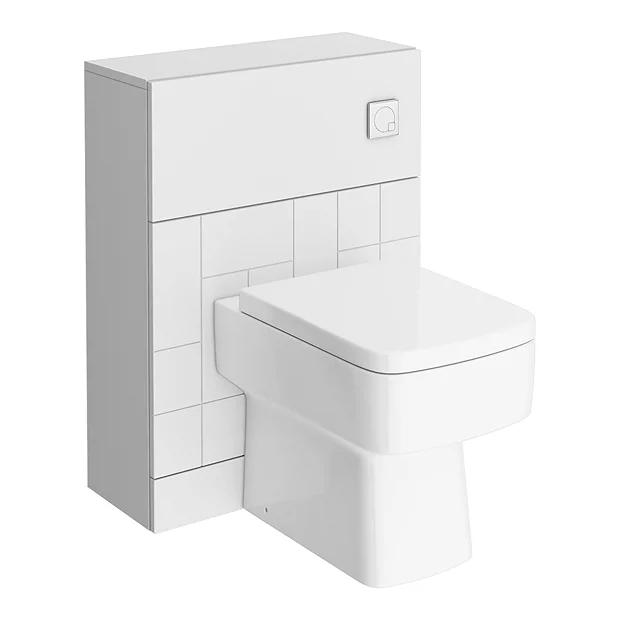

The Venice Abstract Complete 500mm wide toilet unit features an eye-catching geometric design that will create a style statement in your bathroom. Manufactured from quality materials, this WC unit comes fully assembled and is finished in white satin. Supplied with a quality square WC pan including a soft closing seat and luxury polished chrome flush flush concealed cistern.

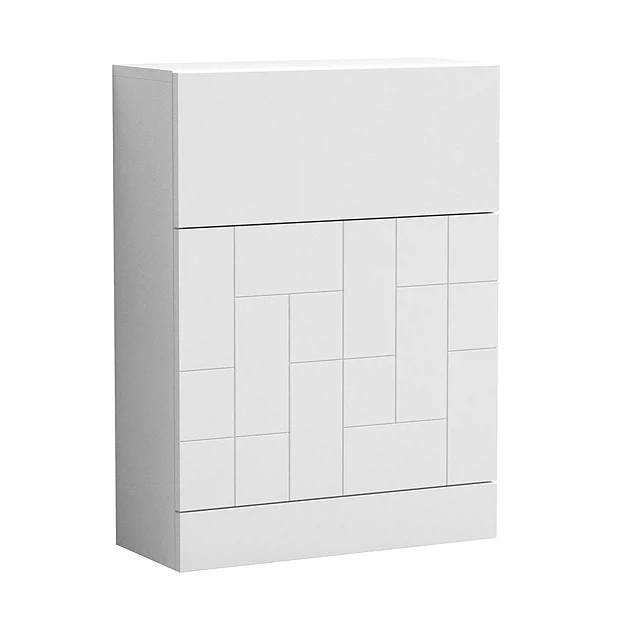

WC Unit Details

• Height: 810mm
• Depth: 253mm
• Width: 500mm
• Colour: White satin finish
• Style: Modern
• Cabinet Material Finish: MFC Painted Matt
• Fascia Material Finish: MDF Painted Matt
• Cabinet Thickness: 18mm
• Modern geometric design
• Fully assembled (not flat packed)
• Cam & wood dowel construction
• Floor standing

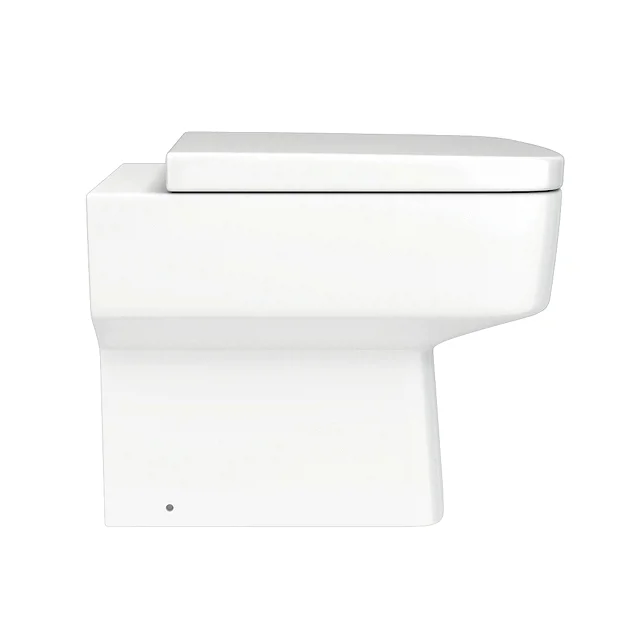

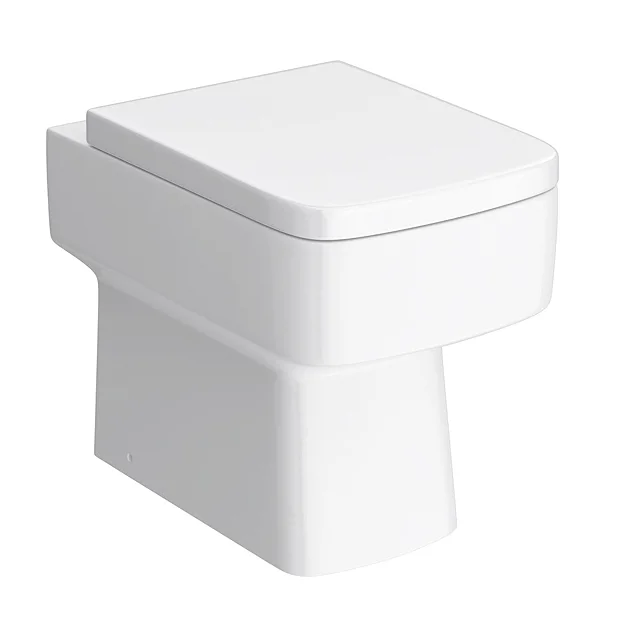

Pan Details

• Width: 350mm
• Height: 400mm
• Depth: 520mm
• Material: Ceramic
• Finish: Gloss White
• Type: Back To Wall
• Top-fix toilet seat
• Soft Close Seat
• Quick release
• Compliance / Approvals
• BS 3402: 1969: Specification for quality of vitreous china sanitary appliances
• BS EN 33 WC pans with close coupled cistern, connecting dimensions
• BS EN 997 WC pans with integral trap.
• Water supply regulations 1999

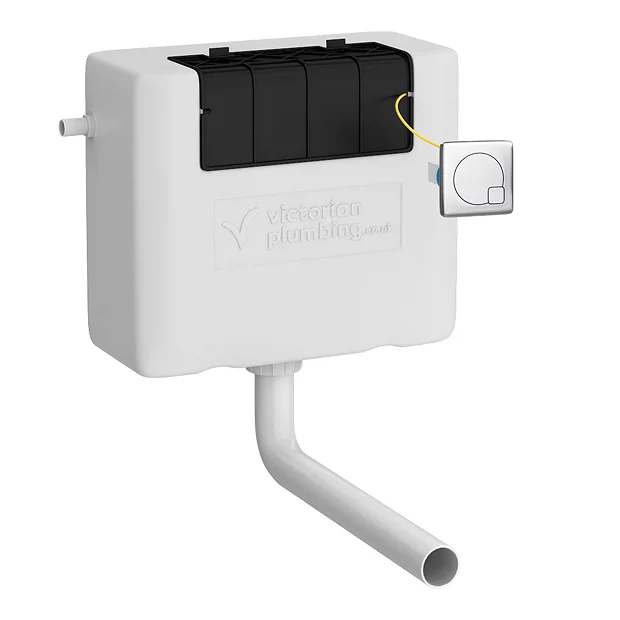

Concealed Cistern Details

• Width: 345mm
• Depth: 140mm
• Height: 300mm
• Strong and durable
• Cable concealed dual flush
• Universal access for maintenance
• Dual flush, 6 litre full flush, 4 litre half flush
• Chrome finished dual flush button
• Internal Overflow
• Simple installation
• Button is NOT Fixed and can be moved and attached to furniture accordingly
• Cistern blanking plug not included (sold separately)

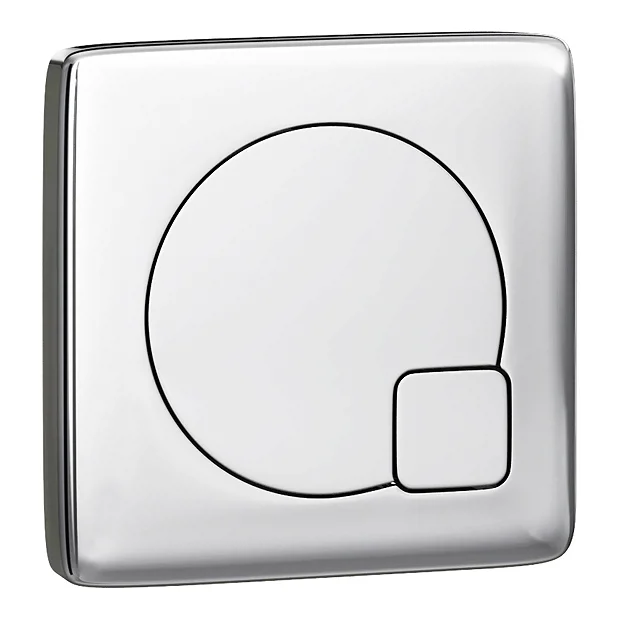

Square Push Button Plate Details

• Width: 70mm
• Height: 70mm
• Depth: 99mm
• Material: ABS
• Finish: Polished Chrome
• Shape: Square
• Style: Contemporary
• Designed to work with the existing cable operated valve
• For use with dual flush cisterns

Product images are for illustrative purposes only and may differ from the actual product.

All measurements are approximate

Guarantee: 5 Year (Flush button for 2 years, Seat guaranteed for 1 year)

Comprises

(1) Brooklyn Squared BTW Pan
(1) Top Fix Urea Soft Close Seat
(1) Venice Abstract WC Unit – White – 500mm
(1) Dual Flush Concealed WC Cistern
(1) Polished Chrome Square Push Button Plate
